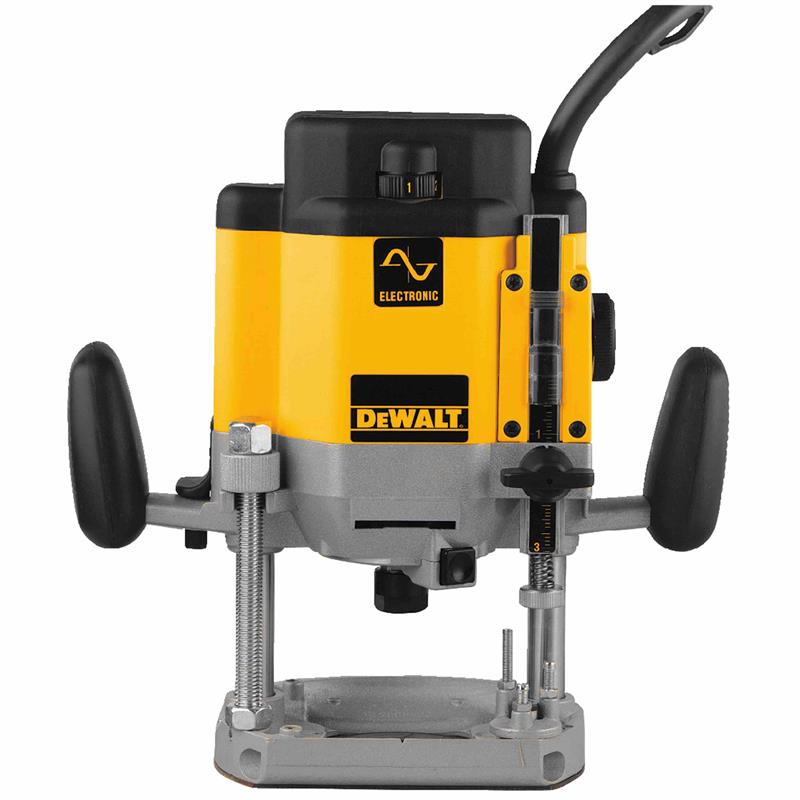

3 HP (maximum motor HP) EVS Plunge Router

DW625

DeWalt

The DW625 3 HP EVS Plunge Router has a powerful 15 Amp full wave electronic variable speed motor that runs at 8,000-22,000 RPM with constant speed under load. Rack-and-pinion depth adjuster, magnified scale and micro-fine bit depth adjuster enable fast and accurate depth settings.

Quick Overview

    Interested in this item or want more information?

    Hours:

    Phone: (586) 264 - 1962

    Email: sales@rsdale.com

    Can't find what you want? Give us a call and we can help you find it.

    Details


    Features & Specs

    FEATURES

    • 15.0 amp motor uses state-of-the-art circuitry for soft starts and smooth operation
    • Full-wave electronic variable speed motor runs at 8,000-22,000 rpm with constant speed under load to ensure a quality finish in all materials
    • Rack and pinion depth adjuster and magnified scale and micro-fine bit depth adjuster provides fast and accurate depth settings
    • Phosphorous bronze bushings provide a smooth and accurate plunge
    • Spindle lock button allows for single-wrench bit changes
    • Dust extraction adapter for cleaner work sites
    • 1/4" - 1/2" collet capacity for greater versatility
    • Guide bushing adapter plate accepts standard guide bushings for template work
    • One-piece motor shaft and spindle ensures perpendicularity and accuracy

    Specifications

    • Amps 15.0 Amps
    • Base Dimension 5-5/8 x 6-11/16 in
    • Collet Diameter 1/2", 1/4 in
    • Depth Stop 3 Stage Turret Stop
    • Horsepower 3 HP
    • No Load Speed 8,000-22,000 rpm
    • Plunge Stroke 2-7/16 in
    • Power Tool Type Corded
    • Router Base Plunge Base
    • Router Type Large Router
    • Spindle Lock Yes
    • Tool Weight 11.2 lbs

    Includes

    • 1/4" collet
    • 1/2" collet
    • Dust Extraction Adapter
    • Template guide bushing adapter
    • Wrench

    Additional Information


    Manufacturer: DeWalt
