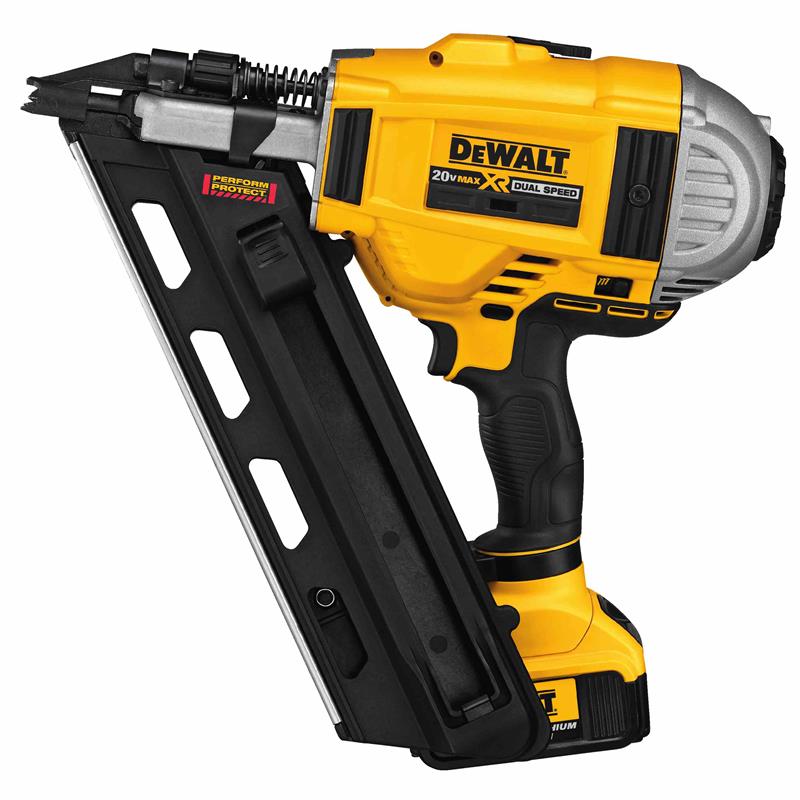

20V MAX* XR Dual Speed Framing Nailer - Kit

DCN692M1

DeWalt

The DCN692M1 20V MAX* XR Lithium Ion Brushless Dual Speed Framing Nailer features consistent nail penetration and precision placement. Designed for optimizing speed for various fastener lengths and easy jam removals.

Quick Overview

    Interested in this item or want more information?

    Hours:

    Phone: (586) 264 - 1962

    Email: sales@rsdale.com

    Can't find what you want? Give us a call and we can help you find it.

    Details


    Features & Specs

    FEATURES

    • Brushless motor and engine design provides enough power to drive 3 1/2" nails
    • Sequential operating mode allows for precision placement and bump operating mode provides the user with production speed
    • Dual speed optimizes motor speed for different nail lengths
    • Easy access to the nosepiece for the removal of jammed nails
    • Trigger lock-off allows trigger to be disabled when tool is not in use
    • Top cap is impact resistant and easy to remove for troubleshooting
    • Accepts 30-34 degree paper tape nails; clipped head or offset full round head
    • Stall release lever quickly resets the drive blade

    Specifications

    • Belt / Rafter Hook Yes
    • Collation Type Paper
    • Depth Adjustment Tool Free
    • Dry Fire Lockout Yes
    • Fastener Diameter Range .113 to .131 in
    • Fastener Type / Gauge: 30 Degree Paper Tape
    • Firing / Acutation Mode Tool Free Selectable Trigger
    • Grip Overmold
    • Jam Clearance Yes
    • Length 2 to 3-1/2 in
    • Magazine Angle 30 Degree
    • Magazine Loading Rear Load
    • Nail Diameter .113 to .131 in
    • No Mar Pad Yes
    • Power Source Cordless
    • Power Tool Type Cordless
    • System 20V MAX*
    • Tool Height 13.5 in
    • Tool Length 13.25 in
    • Tool Weight 7.8 lbs
    • Tool Width 4 in
    • Trigger Lock-Off Yes

    Includes

    • DCB101 Charger
    • (1) 20V MAX* XR Premium Li-Ion Battery (4.0 Ah)
    • No-Mar Tip

    Additional Information


    Manufacturer: DeWalt
