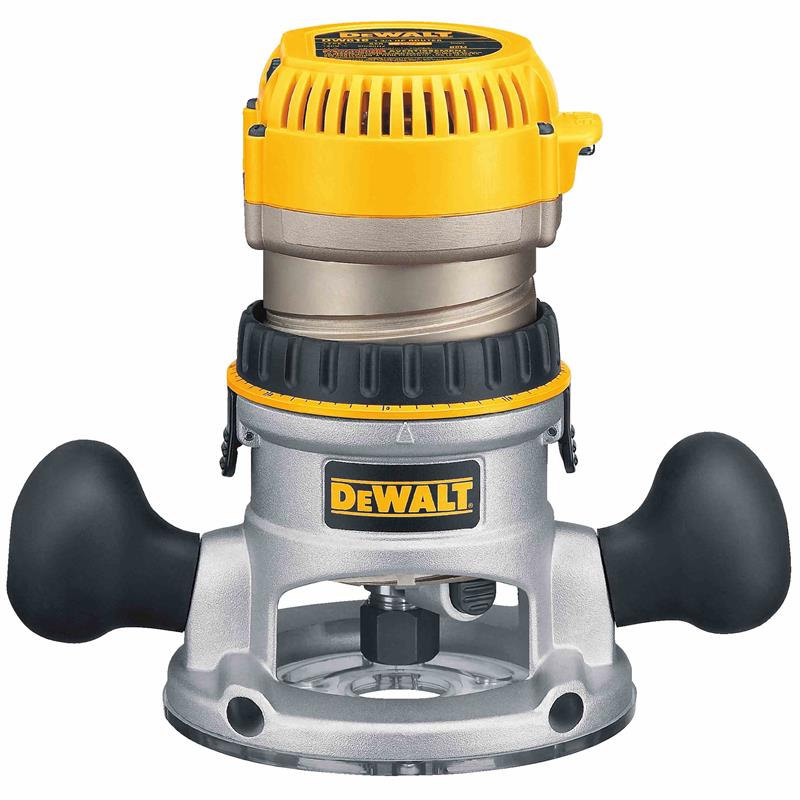

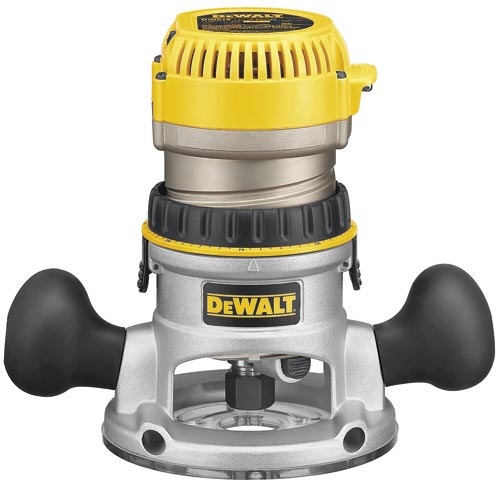

2-1/4 HP (maximum motor HP) EVS Fixed Base Router with Soft Start

DW618

DeWalt

The DW618 2-1/4 HP EVS Fixed Base Router with Soft Start has a powerful motor for routing through tough hardwood at the user's desired speed. Features precise depth adjustments and fast, easy motor pack removal for bit and base changes.

Quick Overview

  • Amps 12.0Amps
  • HP 2-1/4HP
  • No Load Speed 8,000-24,000rpm
  • Collet Diameter 1/2'', 1/4''
  • Plunge Stroke N/A''
  • Depth Stop Micro-fine depth adjustment ring
  • Base Dimension 6''
  • Spindle Lock Yes
  • Tool Weight 7.2lbs
  • Shipping Weight 10.1lbs
Interested in this item or want more information?

Hours:

Phone: (586) 264 - 1962

Email: sales@rsdale.com

Can't find what you want? Give us a call and we can help you find it.

Details


Features & Specs

FEATURES

  • 2-1/4 HP (maximum motor HP), 12.0 amp electronic variable speed motor provides the power to rout smoothly through the toughest hardwoods
  • Electronic variable speed with full feedback control for constant speed under load from 8,000-24,000 rpm and soft start to reduce start-up torque for enhanced control
  • Micro-fine depth adjustment ring provides precise depth adjustments in 1/64" increments and adjusts vertically for a constant switch/cordset location
  • Adjustable, tool-free steel motor cam lock makes depth adjustment and base changes quick and solid-locking
  • Quick release motor latches for fast and easy motor pack removal for bit and base changes
  • Detachable cordset offers cordset serviceability and removes the need for a "shorty" cord motor pack
  • Spindle lock button allows for single-wrench bit changes
  • Clear, LEXAN sub-base provides enhanced base durability, bit visibility, and accepts standard template guide bushings
  • Rubber overmolded handles and low center of gravity design provide best-in-class comfort, balance, and control
  • Dust-Sealed Switch protects against dust ingestion for longer switch life
  • Heavy-duty, precision-machined, die-cast aluminum base and motor housing for durability and low tool weight
  • Nickel plated motor housing for a smooth, long-lasting depth adjustment
  • Right or left switch and cordset location provides the ability to have the switch in your right or left hand
  • Flat top for easy bit and depth changes
  • Self-releasing, long, eight slot collets for better bit retention and elimination of frozen bits

Specifications

  • Amps 12.0 Amps
  • Base Dimension 6 in
  • Collet Diameter 1/2", 1/4 in
  • Depth Stop Micro-fine depth adjustment ring
  • Horsepower 2 1/4 HP
  • No Load Speed 8,000-24,000 rpm
  • Plunge Stroke N/A in
  • Power Tool Type Corded
  • Router Base Fixed Base
  • Router Type Midsize Router
  • Spindle Lock Yes
  • Tool Weight 7.2 lbs

Includes

  • DW618M motor pack
  • DW6184 fixed base
  • 1/4" and 1/2" collets
  • Wrench

Additional Information


Manufacturer: DeWalt
