12'' (305mm) Double-Bevel Compound Miter Saw

DW716

DeWalt

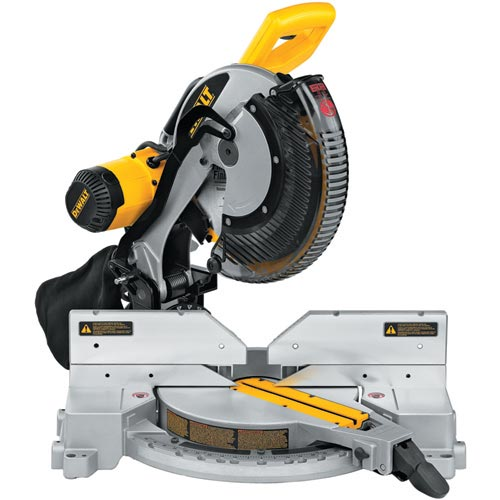

DeWalt DW716 12'' (305mm) Double-Bevel Compound Miter Saw

Quick Overview

  • Blade Diameter 12''
  • Amps 15Amps
  • No Load Speed 3,600rpm
  • Arbor Size 5/8'' or 1''
  • Vertical Capacity: Baseboard Against Fence 6-1/2''
  • Vertical Capacity: Crown Molding Vertically Nested 6-5/8''
  • Horizontal Capacity: Baseboard Lying Flat 10''
  • Horizontal Capacity: Crown Molding Lying Flat 6-1/2''
  • 45° Bevel Cut Capacity (dimensional lumber) 2x8 (2x10 with back fence) left and right
  • 90° Cross-Cut Capacity (dimensional lumber) 2x8 (2x10 with back fence)''
  • 90° Cross-Cut Capacity (Max Width) 2x8 (2x10 with back fence)
  • 45° Miter Cut Capacity (Max Height) 4x6 dimensional lumber
  • 45° Miter Cut Capacity (Max Width) 2x6 (2x8 with back fence) dimensional lumber
  • Tool Weight 44lbs
  • Shipping Weight 49lbs
Interested in this item or want more information?

Hours:

Phone: (586) 264 - 1962

Email: sales@rsdale.com

Can't find what you want? Give us a call and we can help you find it.

Details


15.0 Amp, 3,600 rpm motor delivers extended power and durability. Adjustable stainless steel miter detent plate with 11 positive stops Improves productivity and ensures cutting accuracy. Precise miter system and machined base fence support optimize cutting accuracy. Tall sliding fences support crown molding up to 6-5/8'' nested and base molding up to 6-1/2'' vertically against the fence while easily sliding out of the way for bevel cuts. Innovative gearbox and belt-drive design increases vertical cutting capacity. Double bevel design allows saw to bevel left and right 0° - 48° with positive stops at 0°, 33.9°, 45° and 48° both left and right allowing user to flip the saw not the material. Exclusive Back Fence Design Cuts 2 x 10 dimensional lumber at 90° and 2 x 8 at 45°. 0-50° left and right miter capacity for greater versatility. Lightweight (44 lbs.), head lock-down pin, and built-in carrying handle for increased portability. Designed for use with the DW7187 DEWALT® adjustable miter saw laser system which enhances visibility of the cutting path. Cam lock miter handle with detent override deliver quick and accurate miter angles.

Additional Information


Manufacturer: DeWalt
