12'' (305mm) Double-Bevel Sliding Compound Miter Saw

DW718

DeWalt

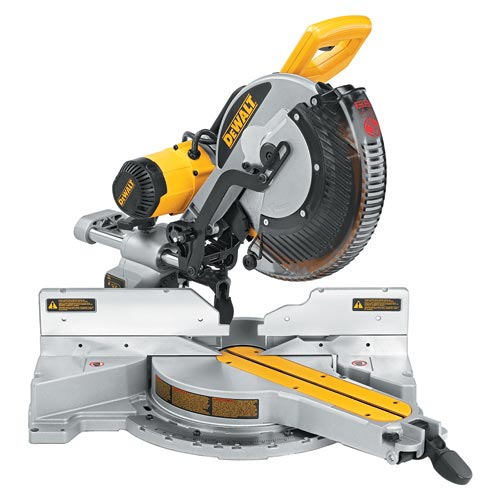

DeWalt DW718 12'' (305mm) Double-Bevel Sliding Compound Miter Saw

Quick Overview

  • Blade Diameter 12''
  • Amps 15Amps
  • No Load Speed 3,600rpm
  • Arbor Size 5/8'' or 1''
  • Vertical Capacity: Baseboard Against Fence 6-1/2''
  • Vertical Capacity: Crown Molding Vertically Nested 6-5/8''
  • Horizontal Capacity: Baseboard Lying Flat 16''
  • Horizontal Capacity: Crown Molding Lying Flat 11-1/4''
  • 45° Bevel Cut Capacity (dimensional lumber) 2x14 (2x16 with back fence)
  • 90° Cross-Cut Capacity (dimensional lumber) 2x14 (2x16 with back fence)''
  • 90° Cross-Cut Capacity (Max Width) 16''
  • 45° Miter Cut Capacity (Max Height) 2x12
  • 45° Miter Cut Capacity (Max Width) 2x12
  • Tool Weight 53lbs
  • Shipping Weight 57lbs
Interested in this item or want more information?

Hours:

Phone: (586) 264 - 1962

Email: sales@rsdale.com

Can't find what you want? Give us a call and we can help you find it.

Details


Powerful 15 Amp, 3,600 rpm motor delivers extended power and durability. Adjustable stainless steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy. Precise miter system and machined base fence support optimize cutting accuracy. Tall sliding fences support crown molding up to 6-5/8'' nested and base molding up to 6-1/2'' vertically against the fence while easily sliding out of the way for bevel cuts. Innovative gearbox and belt-drive design increases vertical cutting capacity. Single lever action double bevel design easily bevels left and right 0° - 48° with positive stops at 0°, 22.5°, 33.9° and 45° in both directions permitting user to flip the saw and not the material. Exclusive Back Fence Design cuts up to 2x16 dimensional lumber at 90° and 2x12 at 45°. Miters 60° to the left and 50° to the right provides increased capacity. Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw. Cam lock miter handle with detent override deliver quick and accurate miter angles. Compact, lightweight design (53 lbs.) allows for easy transport and storage. Designed for use with the DW7187 DEWALT® adjustable miter saw laser system which enhances visibility of the cutting path.

Additional Information


Manufacturer: DeWalt
