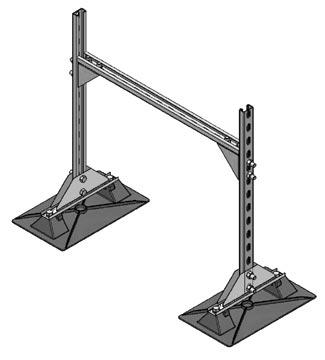

A frame constructed of strut and MIRO's patented bases are used to support duct on flat roofs. Unique design allows a sturdy support without penetrating or causing damage to the roof membrane. Ducts rest on a 1 5/8" x 13/16" strut and are adjustable in height. The duct support base is made of polycarbonate and hot-dip galvanized steel and all other metal parts are made of hot-dip galvanized steel.
- Base Material: Polycarbonate
- Size: Base is 9" x 15.25", has a bar width which allows at least 10" between the strut assembly. Can adjust in height to support duct from a low of 12" to a high of 36" in elevation above the roof membrane.
- Max Load Weight: Maximum load weight not to exceed 150 lbs. per duct support or 75 lbs. on each base.
- Spacing: Manufacturer's recommended spacing is not to exceed 8 foot centers depending upon the load. Do not exceed load weight.
Interested in this item or want more information?
Hours:
Phone: (586) 264 - 1962
Email: sales@rsdale.com
Can't find what you want? Give us a call and we can help you find it.
Additional Information
Manufacturer: Miro Industries, Inc.
