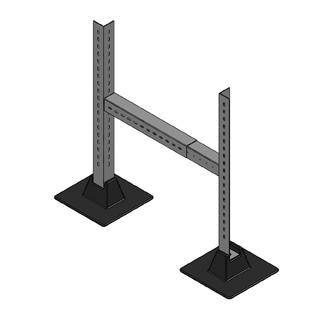

A frame constructed of strut and MIRO's patented bases are used to support duct on flat roofs. Unique design allows a sturdy support without penetrating or causing damage to the roof membrane. Ducts rest on a 14 gauge channel and are adjustable in height and width. All 4-DSA models are manfactures in a 14 gauge telescoping design for maximum adjustability in length and height in polycarbonate plastic and all other metal parts are made of hot-dip galvanized steel.
- Base Material: Polycarbonate
- Size: Base is 8" x 8", has adjustable bar width up to 18". Can adjust in height up to 18" in elevation above the roof membrane.
- Max Load Weight: Maximum load weight not to exceed 100 lbs. per duct support or 50 lbs on each base or 16" spiral duct.
- Spacing: Manufacturer's recommended spacing is not to exceed 10 foot centers depending upon the load. Do not exceed 100 lbs. load weight per duct support.
Interested in this item or want more information?
Hours:
Phone: (586) 264 - 1962
Email: sales@rsdale.com
Can't find what you want? Give us a call and we can help you find it.
Additional Information
Manufacturer: Miro Industries, Inc.
