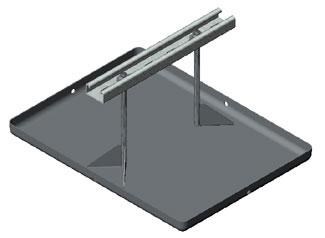

A pipestand with a strut and clamp pipe support system used for ganging roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a 12" length of strut which is mounted on the base. The pipes can then be fastened by using typical clamps locked to the strut.
- Base Material: Stainless
- Size: The deck base is 12" by 16" , has a maximum bar length of 12".
- Max Pipe Clearance: Can adjust in height from a low of 2.5" to a high of 7.5" in elevation above the roof membrane.
- Max Load Weight: Maximum load weight may not exceed 150 lbs. per pipestand.
- Spacing: Manufacturer's recommended spacing is not to exceed 10 foot centers depending upon the load. Do not exceed 100 lbs. load weight.
Interested in this item or want more information?
Hours:
Phone: (586) 264 - 1962
Email: sales@rsdale.com
Can't find what you want? Give us a call and we can help you find it.
Additional Information
Manufacturer: Miro Industries, Inc.
