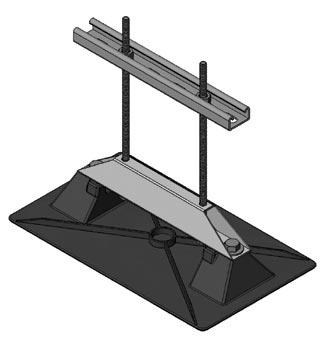

A pipe support with "strut" used to support roof-mounted electrical conduit, solar piping, gas pipes, and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a strut system which is made of hot-dip galvanized steel. The pipe support base is made of polycarbonate resin, and all other metal parts are made of hot-dip galvanized or stainless steel. Pipestand will accommodate up to 2.5" pipe (inside diameter) or up to 3" (outside diameter) pipes.
- Base Material: Polycarbonate
- Size: The deck base is 9" X 15.25" and the strut is 1 5/8" by 13/16" strut and 12" long.
- Max Pipe Size: 2.5" inside diameter and 3" outside diameter.
- Max Pipe Clearance: 2.5-Conduit Support-12 has a maximum pipe clearance of 12" above the roof membrane.
- Max Load Weight: Maximum load weight may not exceed 223 lbs. per pipestand.
- Spacing: Manufacturer's recommended spacing is not to exceed 10 foot centers depending upon the load.
Interested in this item or want more information?
Hours:
Phone: (586) 264 - 1962
Email: sales@rsdale.com
Can't find what you want? Give us a call and we can help you find it.
Additional Information
Manufacturer: Miro Industries, Inc.
