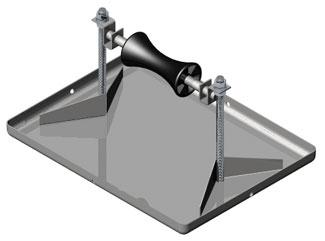

A "roller-bearing" pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a self-lubricating roller which is made of a sturdy stainless steel rod and heavy-duty SBR rubber or polycarbonate roller. The pipe support base and all metal parts are made of stainless steel. Pipestand will accommodate up to a 6" pipe (inside diameter) or up to 8-1/2" (outside diameter) pipes.
- Base Material: Stainless
- Size: The deck base is 12" x 16" and has a maximum cradle width of 8-1/2".
- Max Pipe Size: 6" inside diameter and 8.5" outside diameter.
- Max Pipe Clearance: Can adjust in height from a low of 3.5" to a high of 7" in elevation above the roof membrane.
- Max Load Weight: Maximum load weight not to exceed 349 lbs. per pipestand.
- Spacing: Manufacturer's recommended spacing is not to exceed 10 foot centers depending upon the load.
Interested in this item or want more information?
Hours:
Phone: (586) 264 - 1962
Email: sales@rsdale.com
Can't find what you want? Give us a call and we can help you find it.
Additional Information
Manufacturer: Miro Industries, Inc.
