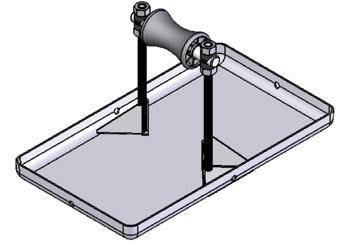

A "roller-bearing" pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damge to the roof membrane. Pipes rest on a self-lubricating roller which is made of a stainless steel rod and a polycarbonate resin roller. The pipe support base and all other metal parts are made of stainless steel. Pipestand will accomodate up to 3" inside diameter pipe or up to 3.75" outside diameter pipes.
- Base Material: Stainless
- Size: The deck base is 8" by 14", has a maximum cradle width of 4".
- Max Pipe Size: 3" inside diameter and 3.75" outside diameter.
- Max Pipe Clearance: Can adjust in height from a low of 5.5" to a high of 7" in elevation above the roof membrane.
- Max Load Weight: Maximum load weight may not exceed 192lbs. per pipestand.
- Spacing: Manufacturer's recommended spacing should not exceed 10 foot centers depending on the load.
Interested in this item or want more information?
Hours:
Phone: (586) 264 - 1962
Email: sales@rsdale.com
Can't find what you want? Give us a call and we can help you find it.
Additional Information
Manufacturer: Miro Industries, Inc.
