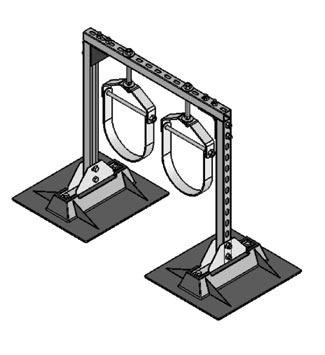

A "roller-bearing" or "clevis hanger" pipe support hanger used to support roof-mounted gas pipes, HVAC piping, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a polycarbonate or steel roller hanger or clevis hanger. The pipe support base is made of sturdy polycaronate plastic and all other metal parts are made of hot-dip galvanized steel. Pipestand will accommodate up to 8" inside diameter pipe or larger.
- Base Material: Polycarbonate (SB)
- Size: Each of the two deck bases are 18" by 16", and has a cradle width which allows at least 12" between the strut assembly.
- Max Pipe Size: 8" inside diameter minimum.
- Max Pipe Clearance: Can adjust in height to support pipe from a low of 6" to a high of 36" in elevation above the roof membrane. The strut is 1-5/8" square, the strut assembly is constructed at various heights to give pipe clearance adjustment above the roof.
- Max Load Weight: Maximum load weight not to exceed 700 lbs. per pipestand or 350 lbs. on each base.
- Spacing: Manufacturer's recommended spacing is not to exceed 10 foot centers depending upon the load. Do not exceed 700 lbs. load weight (350 lbs. on each base) and make certain each pipestand is adjusted in height to even load at all pipestands.
Interested in this item or want more information?
Hours:
Phone: (586) 264 - 1962
Email: sales@rsdale.com
Can't find what you want? Give us a call and we can help you find it.
Additional Information
Manufacturer: Miro Industries, Inc.
