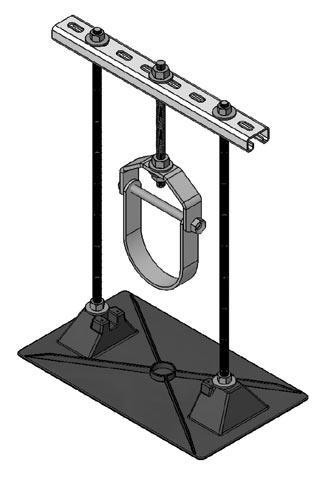

A "roller-bearing", "clevis hanger", or "band hanger" pipe support, used to support roof-mounted gas pipes, HVAC piping, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a polycarbonate, or steel roller, clevis hanger or band hanger. The pipe support base is made of sturdy polycarbonate resin and all metal parts are made of stainless steel or hot-dip galvanized steel. Pipestand will accommodate up to a 2.5" pipe (inside diameter) or up to 3.5" (outside diameter) pipes.
- Base Material: Polycarbonate
- Size: The deck base is 9" x 15.25", has a cradle width which allows up to 10" between the all-thread assembly.
- Max Pipe Size: 2.5" inside diameter and 3.5" outside diameter.
- Max Pipe Clearance: Will support pipe from a low of 5" to a high of 18" in elevation above the roof membrane.
- Max Load Weight: Maximum load weight not to exceed 125 lbs. per pipestand.
- Spacing: Manufacturer's recommended spacing is not to exceed 10 foot centers depending upon the load. Do not exceed 125 lbs. load weight.
Interested in this item or want more information?
Hours:
Phone: (586) 264 - 1962
Email: sales@rsdale.com
Can't find what you want? Give us a call and we can help you find it.
Additional Information
Manufacturer: Miro Industries, Inc.
