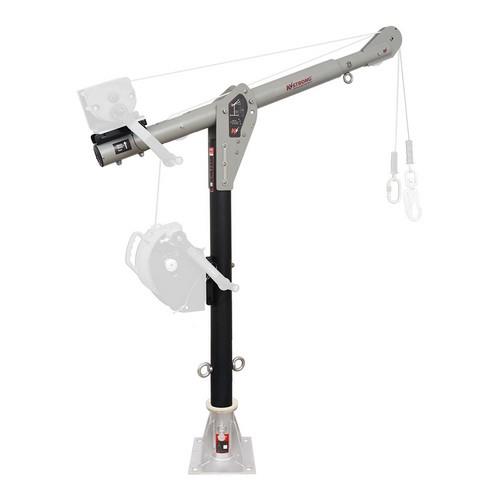

KStrong® Megadavit™ Floor Mount Basic Kit. Includes Floor Mount Column Mast Receiver, 54 in. Column Mast, and 3 ft. Cantilever Boom Arm with Winch Bracket.
Interested in this item or want more information?
Hours:
Phone: (586) 264 - 1962
Email: sales@rsdale.com
Can't find what you want? Give us a call and we can help you find it.
Details
- DESIGN:
- Lower mast assembly is designed to be fixed on KStrong® Megadavit™ system with H-base davit, wall/floor mounted, hitch mounting davit/concrete flush mounted davit.
- Comes with pre installed mounting bracket which is compatible with retrieval blocks by using universal mounting bracket.
- Upper offset mast (BOOM) support plate is designed to attach the upper offset mast with the help of locking pins & can be adjusted at 3 defined positions.
- Additional eye nut is provide to use as an anchorage point in case of rescue.
- Cap is provided on top of assembly to prevent ingress of water and dust particles
- MATERIAL:
- Lower mast: Aluminum alloy
- Eye nut: Stainless steel
- Mounting bracket: Alloy steel
- FINISH:
- Lower mast: ED coated grey
- Eye nut: Polished
- Mounting bracket: ED coated black
- WEIGHT:
- 33.52 lbs ± 0.44 lbs. (15.20kgs ± 0.20kgs)
- RELEVANT STANDARDS:
- Conforms to EN 795:2012 Type A
Additional Information
Manufacturer: K-Strong
