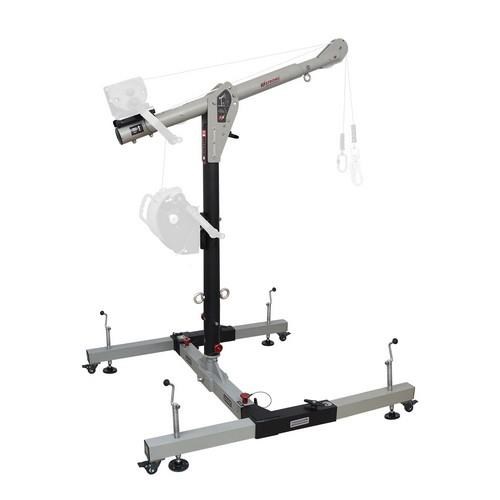

KStrong® Megadavit™ H-Base Basic Kit. Includes H-Base Frame Assembly, 54 in. Column Mast, and 3 ft. Cantilever Boom Arm with Winch Bracket
Interested in this item or want more information?
Hours:
Phone: (586) 264 - 1962
Email: sales@rsdale.com
Can't find what you want? Give us a call and we can help you find it.
Details
- DESIGN:
- Upper offset mast (BOOM) is designed to be fixed upon lower mast assembly to make complete davit system for confined space entry.
- Upper offset mast can be used with lower mast of all models of KStrong® Megadavit™ system (i.e. H-base mounting, wall/floor mounted, hitch mounting davit/concrete flush mounted davits)
- Comes with pre-installed mounting bracket which is compatible to mount KStrong winches
- Comes with pulleys, which are used for smooth movement of rope / wire used for lowering / lifting or rescue
- Additional eye nut is provide to use as an anchorage point in case of rescue
- MATERIAL:
- Mast arm & big pulley: Aluminum alloy
- Small pulley & eye nut: Stainless steel
- Mounting bracket: Alloy steel
- FINISH:
- Mast arm & big pulley: ED coated grey
- Small pulley & eye nut: Polished
- Mounting bracket: ED coated black
- SYSTEM STRENGTH:
- Housing: Stainless steel
- Sleeve: PTFE
- WEIGHT:
- 27.51 lbs. ± 0.44 lbs. (12.47kgs ± 0.20kgs)
- RELEVANT STANDARDS:
- Conforms to EN 795:2012 Type A
Additional Information
Manufacturer: K-Strong
