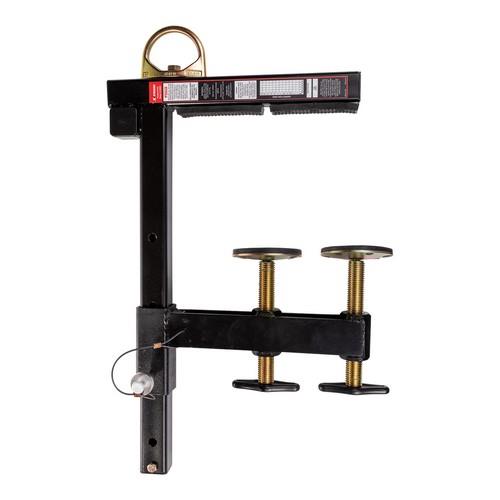

Parapet Clamp Anchor – Adjustable Arm (ANSI)

UFA30070

K-Strong

Quick Overview

Interested in this item or want more information?

Hours:

Phone: (586) 264 - 1962

Email: sales@rsdale.com

Can't find what you want? Give us a call and we can help you find it.

Details

  • DESIGN:
    • Parapet anchor with extended movable arm which allows installation on the parapet with moulding on outer edge.
    • Anchor suitable to be installed on the parapet of a building such that the anchor point lies at the top on the outside facade of the building.
    • Suitable to be installed on varying thickness of the parapet. Width adjustment feature provided.
    • Tightening on to the parapet by use of rubber disks.
  • INSTALLATION:
    • Min. width of the Parapet on which Installation Possible: 2.36” (60mm)
    • Max. width of the Parapet on which Installation Possible: 14.17” (360mm)
  • MATERIAL:
    • High strength alloy steel
  • FINISH:
    • Silver or Golden Yellow Galvanized
  • SYSTEM STRENGTH:
    • Greater than 25 kN21.08 lbs. ± 0.22 lbs. (9560gm ± 100gm)
  • RELEVANT STANDARDS:
    • Meets or Exceeds ANSI Z359.18-2017
  • WEIGHT:

Additional Information

Manufacturer: K-Strong
