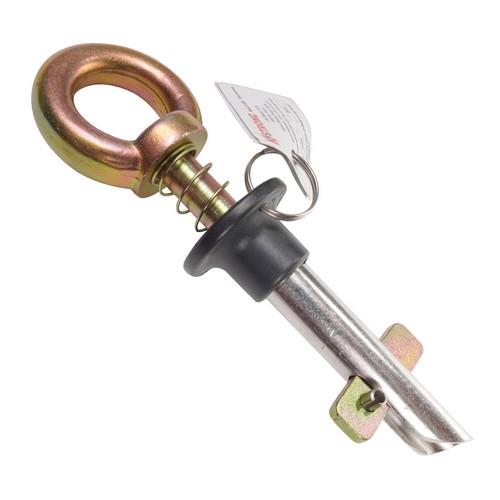

Removable Steel Girder Anchor (ANSI)

UFA30080

K-Strong

Quick Overview

    Interested in this item or want more information?

    Hours:

    Phone: (586) 264 - 1962

    Email: sales@rsdale.com

    Can't find what you want? Give us a call and we can help you find it.

    Details

    • DESIGN:
      • Girder steel anchor is removable/ reusable anchor to be mounted on solid steel structures, Girders and steel I-Beams.
      • Can be installed very easily with one hand only.
      • Maximum thickness of the structure on which installation is possible is 1.57” (40mm).
    • USAGE:
      • For use as an anchorage point for fall protection equipment .
    • MATERIAL:
      • Eye nut & Main body, Alloy steel, Outer Body, Stainless steel moulded with polymer
    • RECOMMENDED BOLT HOLE SIZE:
      • 0.80” (21mm) to 1.18” (30mm)
    • STATIC STRENGTH:
      • Greater than 5000 lbs (2268 kg)
    • WEIGHT:
      • 1.21 lb ± 0.02 lb (550 gm. ±10gm).
    • RELEVANT STANDARDS:
      • Meets or Exceeds ANSI Z359.18-2017 Type A

    Additional Information

    Manufacturer: K-Strong
