Quick Overview
- Size Range : 3/4" Through 36" Pipe Sizes.
- Material : Carbon Steel
- Finish : Plain
- Ordering : Specify Finish; Model Number And Pipe Size.
- Function : Recommended For The Suspension Of Insulated Pipe Lines Normally Used With Weldless Eye Nut.
Interested in this item or want more information?
Hours:
Phone: (586) 264 - 1962
Email: sales@rsdale.com
Can't find what you want? Give us a call and we can help you find it.
Details
| Item No. | 595-3234 | 595-1040 | 595-1440 | 595-2040 | 595-2440 | 595-3040 | 595-1050 | 595-1450 |
| Pipe Size | 3 1/2 inches | 4 inches | 4 inches | 4 inches | 4 inches | 4 inches | 5 inches | 5 inches |
| Figure No. | 3234 | 1040 | 1440 | 2040 | 2440 | 3040 | 1050 | 1450 |
| Actual Thickness of Covering | 3 5/16 inches | 1 1/16 inches | 1 9/16 inches | 2 1/16 inches | 2 9/16 inches | 3 1/16 inches | 1 inches | 1 1/2 inches |

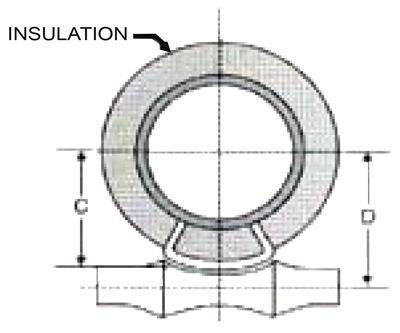

| Center Line of Pipe to Center Line of Saddle, "C" | 5 1/2 inches | 3 9/16 inches | 3 7/8 inches | 4 11/16 inches | 5 1/8 inches | 5 9/16 inches | 4 1/8 inches | 4 1/2 inches |
| Center Line of Pipe to Center Line of Roller, "D" | 6 7/16 inches | 4 3/16 inches | 4 11/16 inches | 5 1/4 inches | 6 1/16 inches | 6 1/4 inches | 4 13/16 inches | 5 5/16 inches |
| Max. Recommended Load | 1800 lbs | 1800 lbs | 1800 lbs | 1800 lbs | 1800 lbs | 1800 lbs | 1800 lbs | 1800 lbs |
| Hanger Roller Size (Fig. 603) | 10 inches | 5 inches | 7 inches | 8 inches | 8 inches | 10 inches | 7 inches | 8 inches |
| Hanger Roller Size (Fig. 601) | 10 inches | 6 inches | 7 inches | 8 inches | 10 inches | 10 inches | 7 inches | 8 inches |
| Approx. Weight per Case | 449 lbs | 158 lbs | 214 lbs | 295 lbs | 343 lbs | 449 lbs | 262 lbs | 330 lbs |
Additional Information
Manufacturer: Globe Pipe Hanger Products
