Quick Overview
- Size Range : 3/4" Through 36" Pipe Sizes.
- Material : Carbon Steel
- Finish : Plain
- Ordering : Specify Finish; Model Number And Pipe Size.
- Function : Recommended For The Suspension Of Insulated Pipe Lines Normally Used With Weldless Eye Nut.
Interested in this item or want more information?
Hours:
Phone: (586) 264 - 1962
Email: sales@rsdale.com
Can't find what you want? Give us a call and we can help you find it.
Details
Item No. | 595-2520 | 595-3120 | 595-1024 | 595-1724 | 595-2224 | 595-2724 | 595-3324 | 595-1030 |
Pipe Size | 2 inches | 2 inches | 2 1/2 inches | 2 1/2 inches | 2 1/2 inches | 2 1/2 inches | 2 1/2 inches | 3 inches |
Figure No. | 2520 | 3120 | 1024 | 1724 | 2224 | 2724 | 3324 | 1030 |
Actual Thickness of Covering | 2 5/8 inches | 3 1/8 inches | 1 1/16 inches | 1 7/8 inches | 2 5/16 inches | 2 7/8 inches | 3 3/8 inches | 1 inches |

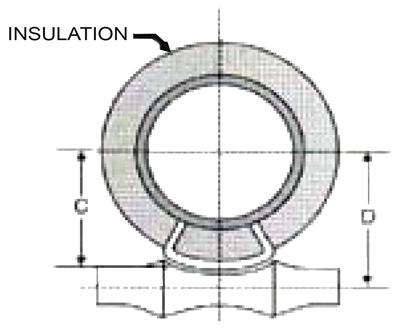

Center Line of Pipe to Center Line of Saddle, "C" | 3 15/16 inches | 4 11/16 inches | 2 11/16 inches | 3 3/4 inches | 3 15/16 inches | 4 7/16 inches | 4 15/16 inches | 2 15/16 inches |
Center Line of Pipe to Center Line of Roller, "D" | 4 3/4 inches | 5 1/2 inches | 3 1/4 inches | 4 1/8 inches | 4 5/8 inches | 5 1/4 inches | 5 3/4 inches | 3 1/2 inches |
Max. Recommended Load | 1800 lbs | 1800 lbs | 1200 lbs | 1800 lbs | 1800 lbs | 1800 lbs | 1800 lbs | 1200 lbs |
Hanger Roller Size (Fig. 603) | 7 inches | 8 inches | 3 1/2 inches | 5 inches | 6 inches | 7 inches | 8 inches | 4 inches |
Hanger Roller Size (Fig. 601) | 7 inches | 8 inches | 5 inches | 6 inches | 7 inches | 7 inches | 10 inches | 5 inches |
Approx. Weight per Case | 318 lbs | 397 lbs | 134 lbs | 198 lbs | 280 lbs | 320 lbs | 398 lbs | 148 lbs |
Additional Information
Manufacturer: Globe Pipe Hanger Products
